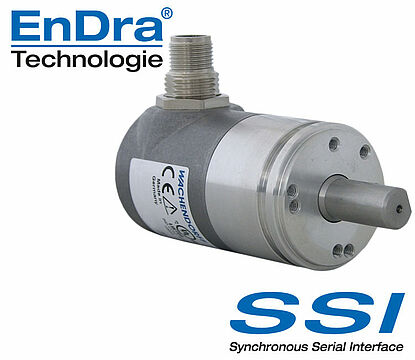

Absolute shaft encoder, magnetic, SSI WDGA 36J
Protection rating: IP67 + IP69K,
(high pressure / steam cleaning)
High shaft load: 300 N axial / radial

Servo flange;
Housing: Ø 36 mm

16/43-bit Single-turn/Multi-turn;
Shaft: Ø 10 mm
binary or gray code

Data sheet General technical data absolute encoders SSI (PDF 281 kB)
Drehgeber encoder WDGA36J SSI
Highlights
  • EnDra multiturn technology: maintenance-free and environmentally friendly
  • Compact industrial model
  • Interface: SSI (Synchronous-serial Interface)
  • Code: Binary- or Gray
  • Preset input
  • Direction of counting changeable
  • Status indicator LED
  • EMC: EN 61000-6-2, EN 61000-6-3
Product details
Flange
servo flange
Housing
Ø 36 mm
stainless steel
Resolution
Single-turn Resolution

up to 65,536 steps/360° (16 bit)

Multi-turn Resolution

up to 43 bit.

Shaft
Ø 10 mm
Shaft length: L: 20 mm
Max. Permissible shaft loading radial: 300 N
Max. Permissible shaft loading axial: 300 N
Max. operating speed
6000 rpm
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
4,75 VDC up to 5,5 VDC
Current consumption: typ. 80 mA
Power consumption: max. 0.44 W
Operating temperature
-40 °C up to +85 °C
Storage temperature
-40 °C up to +100 °C
Protection class
IP67+IP69K all around
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L2 axial, shield connected to encoder housing
Assignments
GNDWH
(+) VccBN
SSI CLK+GN
SSI CLK-YE
SSI DATA+GY
SSI DATA-PK
PRESETBU
DIRRD
Shieldhousing
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L3 radial, shield connected to encoder housing
Assignments
GNDWH
(+) VccBN
SSI CLK+GN
SSI CLK-YE
SSI DATA+GY
SSI DATA-PK
PRESETBU
DIRRD
Shieldhousing
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
CB8 axial, 8-pin, shield connected to encoder housing
Assignments
GND1
(+) Vcc2
SSI CLK+3
SSI CLK-4
SSI DATA+5
SSI DATA-6
PRESET7
DIR8
Shieldhousing
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
CC8 radial, 8-pin, shield connected to encoder housing
Assignments
GND1
(+) Vcc2
SSI CLK+3
SSI CLK-4
SSI DATA+5
SSI DATA-6
PRESET7
DIR8
Shieldhousing
