WDGA 58D PROFINET-IO (cov)

Absolute shaft encoder, magnetic,
PROFINET-IO WDGA 58D
Heavy Duty;
Bus cover: connection 3x M12 connector;
Clamping flange;
Housing: Ø 58 mm

16/43-bit Single-turn/Multi-turn;
Shaft: Ø 12 mm
Protocol: PROFINET-IO (CC-C);
Device Profile: switchable, Class 3, 4

Data sheet General technical Data and safety instructions absolute encoders WDGA Industrial Ethernet (PDF 290 kB)

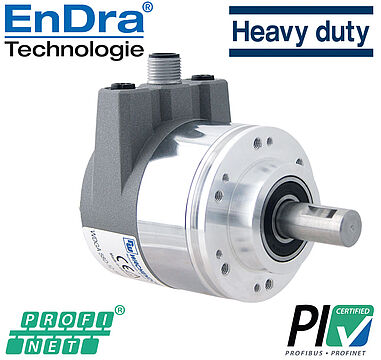

Drehgeber WDGA58D PROFINET-Bushaube
Highlights
  • EnDra®: maintenance-free and environmentally friendly
  • PROFINET-IO, Single-turn/Multi-turn
  • Compact design with bus cover
  • Single-turn/Multi-turn (max. 16 bit/43 bit)
  • Forward-looking technology
  • 2 colour-duo LED´s as indicator for operating condition
    and bus status and 2 L/A LED´s
  • High shaft load up to 400 N radial, 400 N axial
  • Device Profile switchable, Class 3, 4
  • IRT
Product details
Flange
clamping flange
Housing
Ø 58 mm
steel case chrome-plated, magnetic shielding
Resolution
Single-turn Resolution

up to 65,536 steps/360° (16 bit)

Multi-turn Resolution

43 bit

Shaft
Ø 12 mm
Shaft length: L: 25 mm
Max. Permissible shaft loading radial: 400 N
Max. Permissible shaft loading axial: 400 N
Max. operating speed
8000 rpm
Power supply
10 VDC up to 32 VDC
Current consumption: typ. 125 mA
Power consumption: typ. 3 W
Operating temperature
-40 °C up to +85 °C
Storage temperature
-40 °C up to +100 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65
Advice

Configuration software
 Software Download

Licensing declaration
IP >= V1.00

 Licensing declaration

Manual WDGA PROFINET
 Manual PROFINET

KIE-4-67-RJ
KIE-4-67-RJ

Ready-made Industrial Ethernet connection cable KIE-4-67-RJ:
suitable for encoders WDGA with bus cover BI2 (PROFINET, EtherCAT, Universal IE)

Plug M12 - cable - plug RJ45

KIE467DC
KIE-4-67-DC

Ready-made Industrial Ethernet connection cable KIE-4-67-DC:
suitable for encoders WDGA with bus cover BI2 (PROFINET, EtherCAT, universal IE)

Plug M12 - cable - plug M12

KIZ467
KIZ-4-67-IE

Female connector KIZ-4-67:
For power supply, 4 pin

Ready-made shielded connection cable with female cable connector straight,
shield connected, IP67+IP69K.

MW58B Drehgeber Montagewinkel
MW58B

Mounting angle MW58B

suitable for inkremental encoder WDGI 58B, 58K, 58D, WDG 58T and
absolute encoder WDGA 58B, WDGA 58D.

QF58B Drehgeber Quadratflansch
QF58B

Square flange QF58B

suitable for incremental encoder WDG 58B and
absolute encoder WDGA 58B.

SP300 Drehgeber Spannexzenter
SP-3-00

Clamping claw SP-3-00

suitable for incremental encoder WDG 40A, 50B, 58T, WDGI 58A, 58B, 58C, 58D, 58K, 63B and absolute encoder WDGA 36A, WDGA 58A, WDGA 58B.

FSK22 Kupplung Drehgeber
FSK22

Spring disc coupling FSK22

for encoder with shaft Ø 6 mm, 10 mm or 12 mm.

WK24 Kupplung Drehgeber
WK24

Helical coupling WK24

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.

BK29 Kupplung Drehgeber
BK29

Bellows coupling BK29

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*

FB29B Kupplung Drehgeber
FB29B

Bellows coupling FB29B

for encoder with shaft Ø 4 mm, 6 mm, 8 mm, 10 mm or 12 mm.

DSK38 Kupplung Drehgeber
DSK38

Double loop coupling DSK38

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

DSK48 Kupplung Drehgeber
DSK48

Double loop coupling DSK48

for encoder with shaft Ø 10 mm, 12 mm or 14 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

Generally encoder specifications

Absolute encoder specifications

Electrical connection

Cable outlet
Connector
Connection cover
###field_abs_ah_bestcode###

Your configured order code

ShaftSingleturnMultiturnInterfaceSoftwareCodeSupplyGalv.Connection
WDGA 58DPNUB01
