WDGA 58E PROFIBUS-DP (con)

Absolute shaft encoder, magnetic,
PROFIBUS-DP WDGA 58E
Connection: connector
hollow bore (blind);
Housing: Ø 58 mm

14/39-bit Single-turn/Multi-turn;
Bore size: Ø 12 mm, Ø 14 mm, Ø 15 mm;
Ø 6, 6.35 (1/4''), 7, 8, 9.525 (3/8''), 10 mm with adapter sleeve;
Protocol: PROFIBUS-DPV0/V2;
Device Profile: switchable, Class 1, 2, 3, 4;
Line-Driver: galvanic isolated

Data sheet

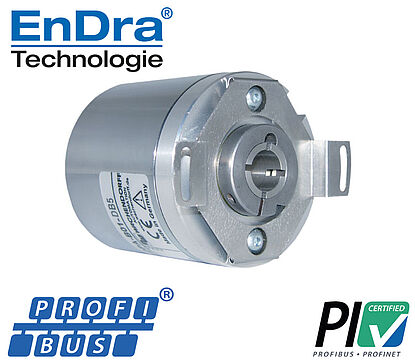

Drehgeber WDGA58E PROFIBUS-Stecke
Highlights
  • EnDra®: maintenance-free and environmentally friendly
  • PROFIBUS-DP, Single-turn/Multi-turn
  • Single-turn/Multi-turn (max. 14 bit/39 bit)
  • forward-looking technology with 32 Bit processor
  • 2 colour-duo LED´s as indicator for operating condition
    and bus status
  • High shaft load up to 80 N radial, 50 N axial
  • Device Profile switchable, Class 1, 2, 3, 4
Product details
Flange
hollow shaft (blind-bored)
Housing
Ø 58 mm
steel case chrome-plated, magnetic shielding
Resolution
Single-turn Resolution

up to 16,384 steps/360° (14 bit)

Multi-turn Resolution

up to 39 bit

Shaft
Ø 6 mm
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 6.35 mm, Ø 1/4"
Advice: with adapter sleeve
Shaft length: L: 17 mm, L: 0.669 in
Insertion depth min.: 10 mm, 0.394 in
Insertion depth max.: 19 mm, 0.748 in
Max. Permissible shaft loading radial: 80 N, 8.158 kp
Max. Permissible shaft loading axial: 50 N, 5.099 kp
Ø 7 mm
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 8 mm
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 9.525 mm, Ø 3/8"
Advice: with adapter sleeve
Shaft length: L: 17 mm, L: 0.669 in
Insertion depth min.: 10 mm, 0.394 in
Insertion depth max.: 19 mm, 0.748 in
Max. Permissible shaft loading radial: 80 N, 8.158 kp
Max. Permissible shaft loading axial: 50 N, 5.099 kp
Ø 10 mm
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 12 mm
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 14 mm
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 15 mm
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
6000 rpm
Power supply
10 VDC up to 32 VDC
Current consumption: typ. 100 mA (24 VDC)
Power consumption: max. 2.5 W
Operating temperature
-40 °C up to +85 °C [-40 °F up to +176 °F]
Storage temperature
-40 °C up to +100 °C [-40 °F up to +212 °F]
Protection class
Housing: IP65, IP67; shaft sealed: IP65
Advice

Configuration software
 Software download


Your desired STEP file is not listed:
Request STEP file here

Description
DB4axial, 1x M8, 4-pin; 1x M12, 5-pin; 1x M12, 4-pin,
Assignments
connector (A)M8x1, 4-pin
(+) Vcc1
n. c.2
GND3
GND4
Female connector (B)M12x1, 5-pin, B-coded
BUSOUT
5 V DP1
A2
GND DP3
B4
n. c.5
connector (C)M12x1, 4-pin, B-coded
BUSIN
n. c.1
A2
n. c.3
B4
WDGWA10M06 Drehgeber encoder Wellenadapter shaft adapter
WDGWA10M06

Shaft adapter WDGWA10M06

for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M6.

WDGWA10M08 Drehgeber Wellenadapter
WDGWA10M08

Shaft adapter WDGWA10M08

for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M8.

WDGWA10M10 Drehgeber Wellenadapter
WDGWA10M10

Shaft adapter WDGWA10M10

for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M10.

WDGWA10M12 Drehgeber Wellenadapter
WDGWA10M12

Shaft adapter WDGWA10M12

for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M12.

WDGWA10M14 Drehgeber Wellenadapter
WDGWA10M14

Shaft adapter WDGWA10M14

for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M14.

WDGWA10M16 Drehgeber Wellenadapter
WDGWA10M16

Shaft adapter WDGWA10M16

for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M16.

WDGWA10M20 Drehgeber Wellenadapter
WDGWA10M20

Shaft adapter WDGWA10M20

for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M20.

WDGHA12XX Reduzierhuelse Drehgeber
WDGHA12

Adpater sleeves for bore size Ø 12 mm

for thru-bore encoder WDGI 58H and
hollow bore (blind) encoder WDGI 58E, WDGA 58E.
