Absolute shaft encoder, magnetic,
PROFIBUS-DP WDGA 58A

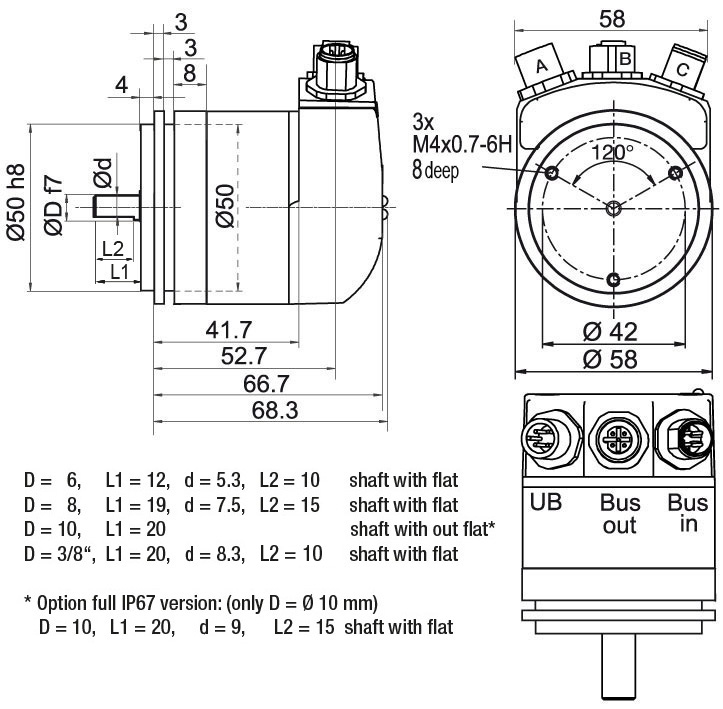

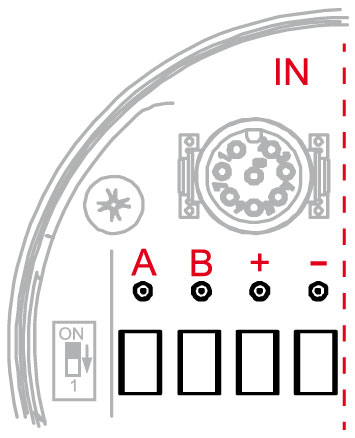

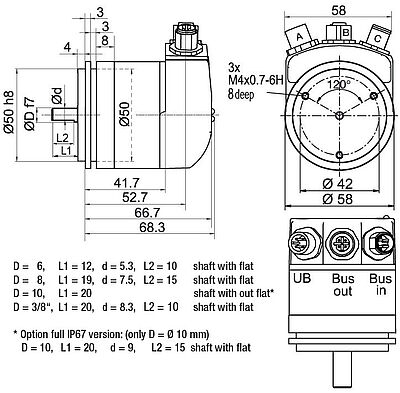

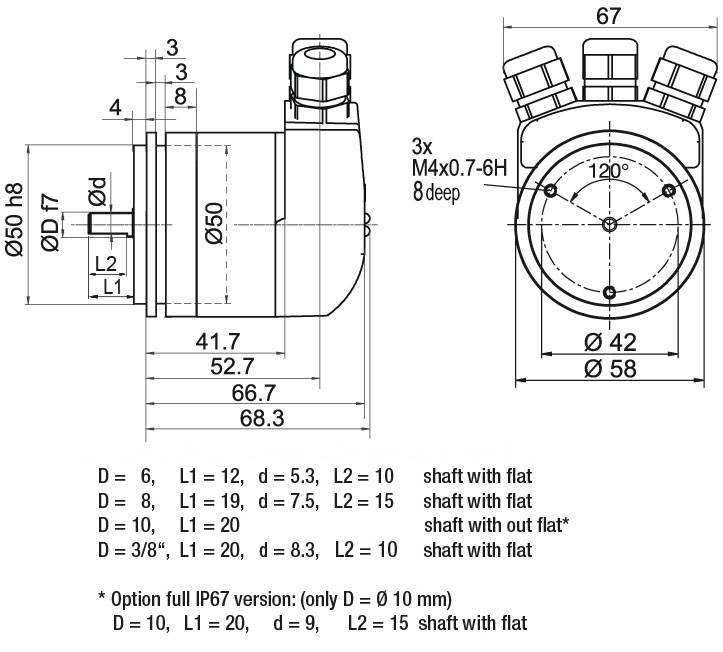

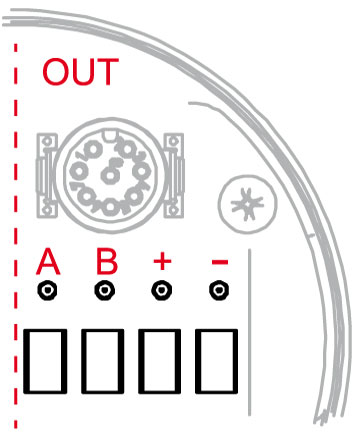

Bus cover: connection clamps or 3x M12 connector
Synchro flange;
Housing: Ø 58 mm
14/39-bit Single-turn/Multi-turn;
Shaft: Ø 6 mm, Ø 8 mm, Ø 10 mm, Ø 3/8";
Protocol: PROFIBUS-DPV2;
Device Profile: switchable, Class 3, 4;
Line-Driver: galvanic isolated
- EnDra®: maintenance-free and environmentally friendly
- PROFIBUS, Single-turn/Multi-turn
- Compact design with bus cover
- Single-turn/Multi-turn (max. 14 bit/39 bit)
- Forward-looking technology with 32 Bit processor
- 2 colour-duo LED´s as indicator for operating condition
and bus status - High shaft load up to 220 N radial, 120 N axial
- Device Profile switchable, Class 3, 4
up to 16,384 steps/360° (14 bit)
Multi-turn Resolutionup to 39 bit
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 12 mm
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 19 mm
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Shaft length: L: 20 mm
Max. Permissible shaft loading radial: 220 N
Max. Permissible shaft loading axial: 120 N
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 20 mm, L: 0.787 in
Max. Permissible shaft loading radial: 220 N, 22.434 kp
Max. Permissible shaft loading axial: 120 N, 12.237 kp
Current consumption: typ. 100 mA (24 VDC)
Power consumption: max. 2.5 W
Configuration software
Software download
- Compact design
- Very high shaft loading
- Can be connected flexibly
- Can be switched between class 3 and 4
Download (1.41 MB)
- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°
Download (1.34 MB)
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.24 MB)
GSD file for Class4 encoder release V1.2 WDGA absolut with Profibus DP (up to DPV2).
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (4.79 KB)
Demo program (for S7 controllers) for Class4 encoder WDGA absolute with Profibus DP.
The demo program is just an example.
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (740 KB)
Declaration from the PROFIBUS-Nutzerorganisation for the WDGA PROFIBUS for Wachendorff Automation GmbH & Co. KG
Download (89 KB)
Helical coupling WK24
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
Bellows coupling BK29
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*
Double loop coupling DSK29
for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Double loop coupling DSK38
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Double loop coupling DSK48
for encoder with shaft Ø 10 mm, 12 mm or 14 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
