Absolute hollow bore (blind) encoder, magnetic, IO-Link WDGA 58E
Housing: Ø 58 mm
16/43 Single-turn/Multi-turn;
hollow bore blind: Ø 12 mm, Ø 14, Ø 15 mm;
Ø 6, 6.35 (1/4''), 7, 8, 9.525 (3/8''), 10 mm with adapter sleeve;
Device Profile for encoder Smart Sensor Profile (SSP);
binary code
- EnDra®: maintenance-free and environmentally friendly
- IO-Link, Single-turn and Multi-turn
- Device Profile for encoder Smart Sensor Profile (SSP)
- Single-turn/Multi-turn (16 bit / 43 bit)
- Forward-looking technology with 32 Bit processor
- Monitoring the power supply
- Cam switches for position and velocity with hysterese
65,536 steps/360° (16 bit)
Multi-turn Resolutionup to 32 bit with high precision value up to 43 bit.
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Current consumption: typ. 20 mA
Power consumption: max. 0.5 W
| Description | |
|---|---|

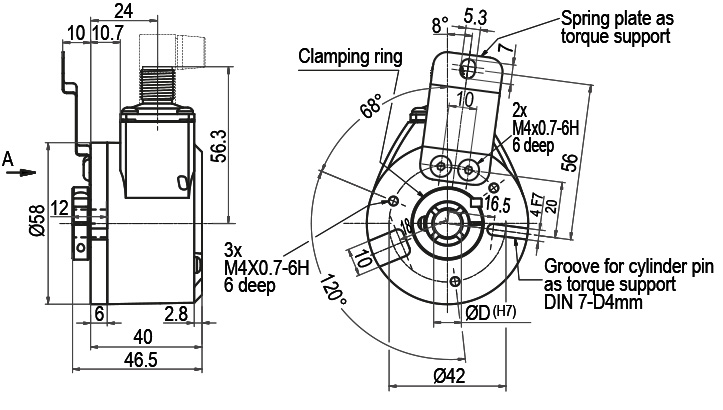

| IC5 | radial, 5-pin, shield connected to encoder housing |
- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°
Download (1.34 MB)
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.24 MB)
Torque support WDGDS10001
suitable for thru-bore or holllow bore (blind) encodes (all types). Is privieded as standard in the required number with all hollow shaft encoders and end hollow shaft encoders (except 36E and 100G).
Torque support WDGDS10004
Torque support for hollow shaft encoders and end hollow shaft encoders
(all types, except 36E and 100G).
Torque support WDGDS10007
Torque support for hollow shaft encoders and end hollow shaft encoders
(all types, except 36E and 100G).
Torque support WDGDS10008
for hollow shaft encoders and end hollow shaft encoders
(all types, except 36E and 100G).
Torque support WDGDS10009
Torque support for hollow shaft encoders and end hollow shaft encoders
(all types, except 36E and 100G).
Torque support WDGDS10012
for hollow shaft encoders and end hollow shaft encoders
(all types, except 36E and 100G).
Torque support WDGDS10020
Torque support for hollow shaft encoders and end hollow shaft encoders
(all types, except 36E, 40E, WDG 100G).
Plastic dog WDGDS10005
suitable for incremental encoder WDGI 58H, WDGI 58E
and absolute encoders WDGA 58E
(CANopen, CANopen LIFT, CAN SAE J199, SSI, RS485).
Shaft adapter WDGWA10M06
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M6.
Shaft adapter WDGWA10M08
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M8.
Shaft adapter WDGWA10M10
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M10.
Shaft adapter WDGWA10M12
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M12.
STEP file:
WDGWA10M12.stp
Shaft adapter WDGWA10M14
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M14.
Shaft adapter WDGWA10M16
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M16.
STEP file: WDGWA10M16.stp
Shaft adapter WDGWA10M20
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M20.
Adapter sleeves for bore size Ø 12 mm
for thru-bore encoder WDGI 58H and
hollow bore (blind) encoder WDGI 58E, WDGA 58E.
