Absolute hollow bore (blind) encoder IO-Link WDGA 36E
Housing: Ø 36 mm
16/43-bit Single-turn/Multi-turn;
Hollow bore blind: Ø 12 mm, Ø 14 mm, Ø 15 mm,
Ø 7 mm, 8 mm, 9.525 mm (3/8"), Ø 10 mm with adapter sleeve;
Device Profile for encoder Smart Sensor Profile (SSP)
binary code
- EnDra®: maintenance-free and environmentally friendly
- IO-Link, Single-turn and Multi-turn
- Device Profile for encoder Smart Sensor Profile (SSP)
- Single-turn/Multi-turn (16 bit / 43 bit)
- Forward-looking technology with 32 Bit processor
- LED as indicator for operating condition and Error message
- Monitoring the power supply
- Cam switches for position and velocity with hysterese
65,536 steps/360° (16 bit)
Multi-turn Resolutionup to 32 bit with high precision value up to 43 bit.
Advice: with adapter sleeve
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Current consumption: typ. 30 mA
Power consumption: max. 0.6 W
| Description | |
|---|---|
| IB5 | axial, 5-pin, shield connected to encoder housing |
| Description | |
|---|---|

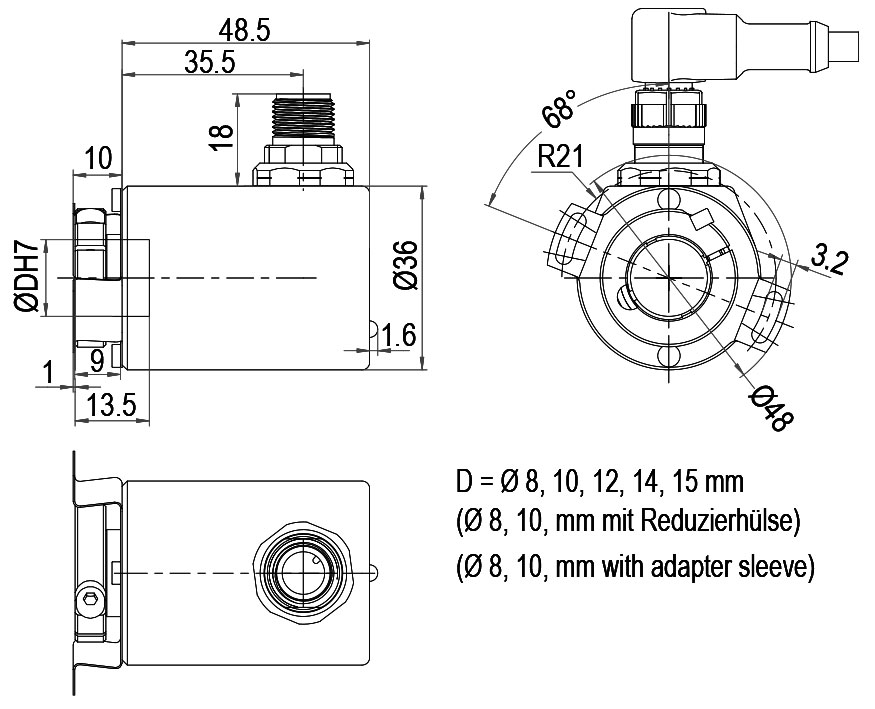

| IC5 | radial, 5-pin, shield connected to encoder housing |
...to be directly installed in motors.
Download (1.39 MB)
- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°
Download (1.33 MB)
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.29 MB)
The future of steel production with smart sensor technology.
Download (1.51 MB)
Shaft adapter WDGWA10M06
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M6.
Shaft adapter WDGWA10M08
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M8.
Shaft adapter WDGWA10M10
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M10.
Shaft adapter WDGWA10M12
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M12.
STEP file:
WDGWA10M12.stp
Shaft adapter WDGWA10M14
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M14.
Shaft adapter WDGWA10M16
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M16.
STEP file: WDGWA10M16.stp
Shaft adapter WDGWA10M20
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M20.
